مشخصات محصول

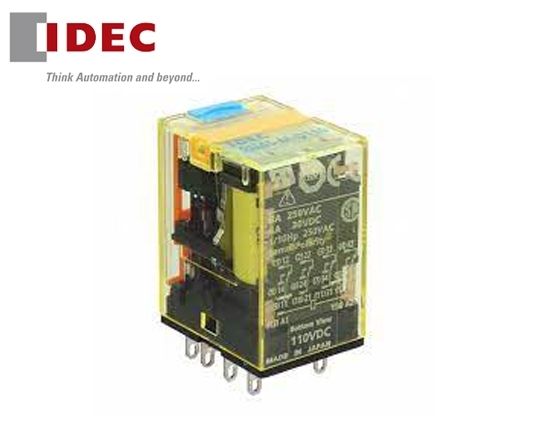

رله همه منظوره مدل RU4S-A220
مشخصات فنی
مشخصات فنی
ویژگی مشخصات
برند Brand
ایدک IDEC
کشور سازنده Country of origin
ژاپن Japan
جنس کنتاکت Contact Material
AuAg/Ag (Gold-Silver alloy on silver)
مقاومت کنتاکت Contact Resistance
50mΩ maximum
حداقل جریان مورد نیاز Minimum Applicable Load
1V DC, 1mA
Operating Time
20ms Maximum
Release Time
20ms Maximum
Maximum Continuous Applied Voltge (AC/DC) at 20°C
110%Of the rated voltage
Minimum Operating Voltage (AC/DC) at 20°C
80%Of the rated voltage
Drop out Voltage (AC)
30%Or more of the rated voltage
Drop out Voltage (DC)
10%Or more of the rated voltage
Power Consumption
1.1-1.4VA(AC), 0.9-1.0W(DC)
Dielectric Strength
Between Contact and Coil: 2,500VAC, 1Minute/ Between Poles: 2,000VAC 1Minute/Between Contact of the Same Pole: 1,000VAC, 1minute
Frequency Response
1800Operation/hour
Life Expectancy
Mechanical:AC:20,000,000 Operations minimum, DC: 30,000,000 Operations minimum
دمای عملکرد ( Operating Temperature(°C
55/70-
Contact Configuration
4PDT
Coil Voltage
AC220~240V
درجه حفاظت IP
40
