Wecon PLCs with different inputs and outputs and various facilities make it possible to select the appropriate model for different applications. Serial and USB ports, high speed outputs, E-CAM, Interpolation, etc. are among the features of Wecon PLCs. User friendly programming and hardware advantages are the features of these products. The LX3V is standard series:

Model No.0806MR/T: 8xDI/6xDO (No Expansion Module Except 1 BD Board)

Model No.1208MR/T: 12xDI/8xDO (No Expansion Module Except 1 BD Board)

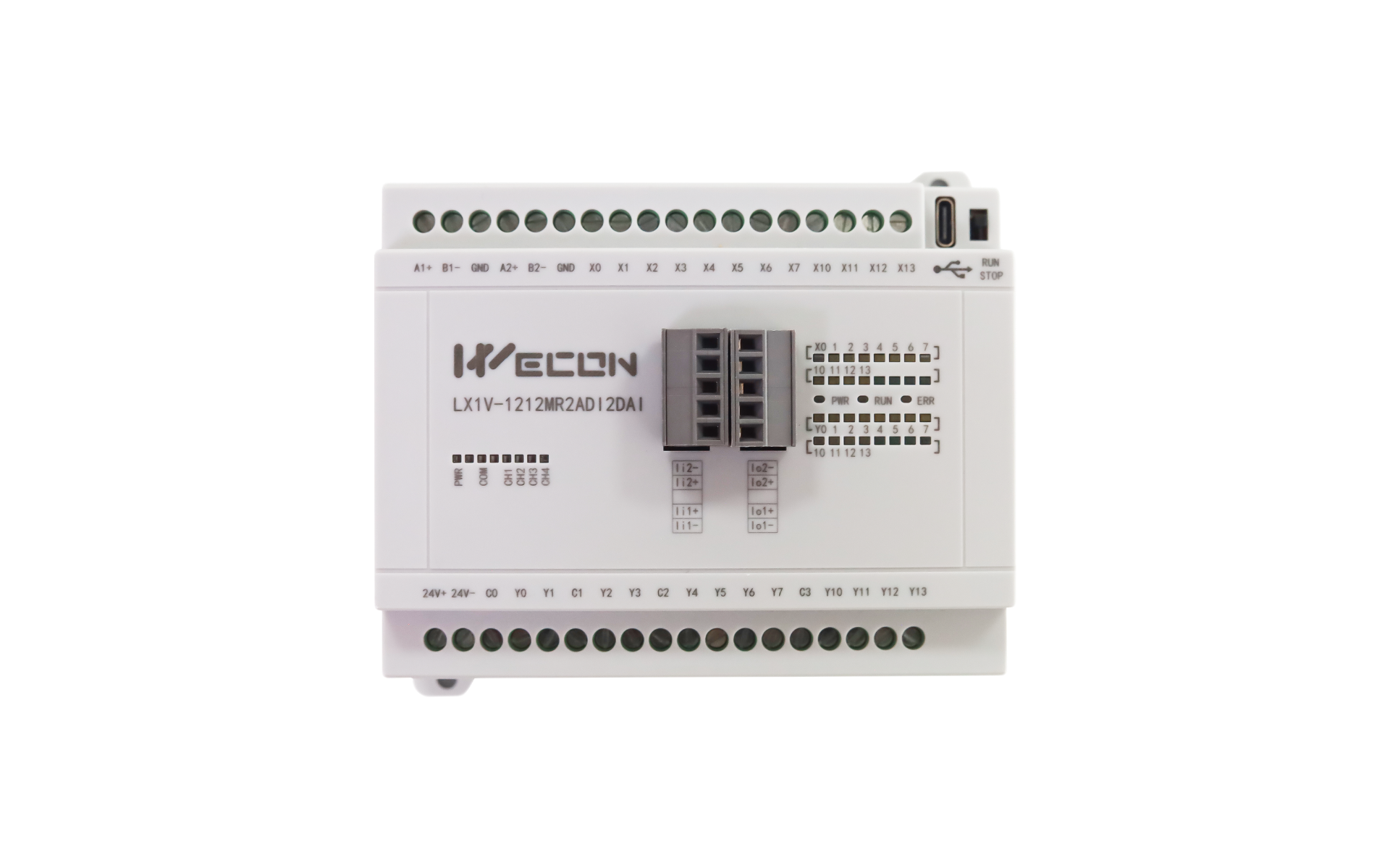

Model No.1212MR/T : 12xDI/12xDO (Expansion Module+ 1 BD Board)

Model No.1410MR/T : 14xDI/10xDO (Expansion Module+ 2 BD Board)

Model No.1412MR/T : 14xDI/12xDO (Expansion Module+ 2 BD Board)

Model No.1616MR/T : 16xDI/16xDO (Expansion Module+ 2 BD Board)

Model No.2416MR/T : 24xDI/16xDO (Expansion Module+ 2 BD Board)

Model No.2424MR/T : 24xDI/24xDO (Expansion Module+ 2 BD Board)

Model No.3624MR/T : 36xDI/24xDO (Expansion Module+ 2 BD Board)

CPU : STM32 CPU,

Sensor Power Supply : DC-24V(400mA)

Main Power Supply :AC100-240V/50-60Hz,DC 24V(Optional) Communication port : support RS422 & RS485, 2 serial port, Communication protocol : support FX2N NO PROTOCOL, programming software support FX2N

Environment temperature : 0~55°C

Storage temperature : -20~70°C
